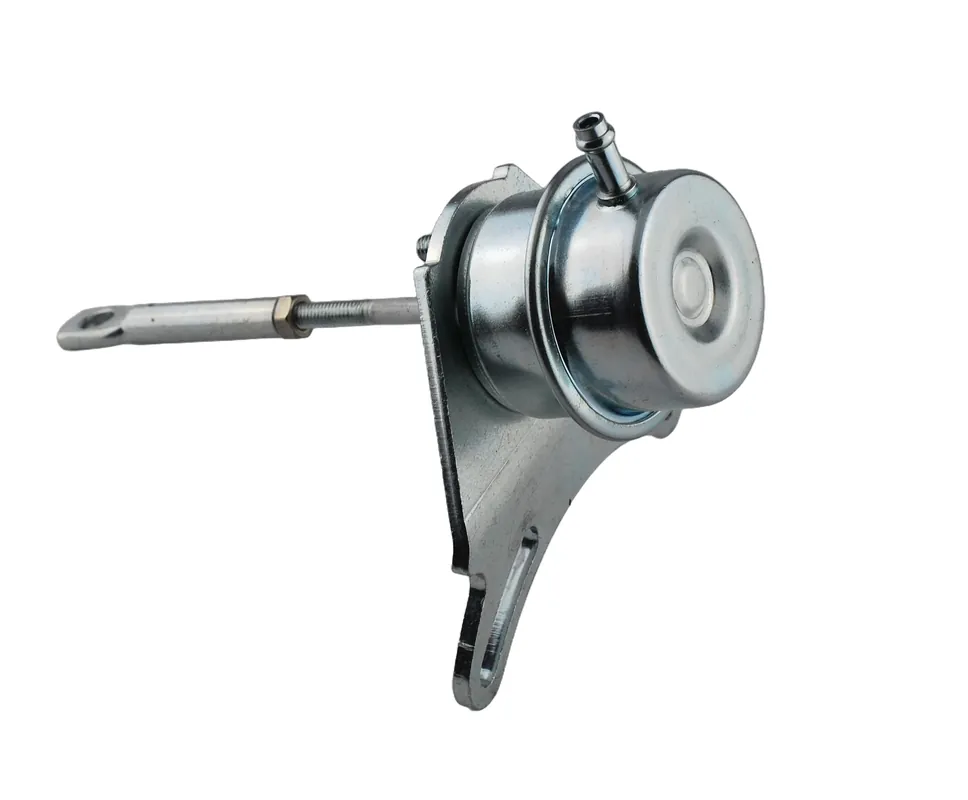

WG arm length: 88mm
Thread length: 40mm
Clevis length: 65mm
Adjustable length: ~120-145mm
Stroke: 20mm
Opening pressure: ~0,7bar / 10PSI
Fully open pressure: ~2,4bar / 35PSI
Mounting bolt CC: 35mm
Mounting bolt hole: 6mm

Assembly instructions:
Mount the wastegate on the turbo unit and adjust it so there is at least a 2mm bias.
Using a pressure gauge: Check when the wastegate arm starts to open.

Adjust the wastegate with more pre-tension (3mm+) if you want a higher opening pressure.
Adjust until you get the desired opening pressure.

Note that measured opening pressure may vary during use due to exhaust pulses, exhaust pressure, back pressure and heat.
